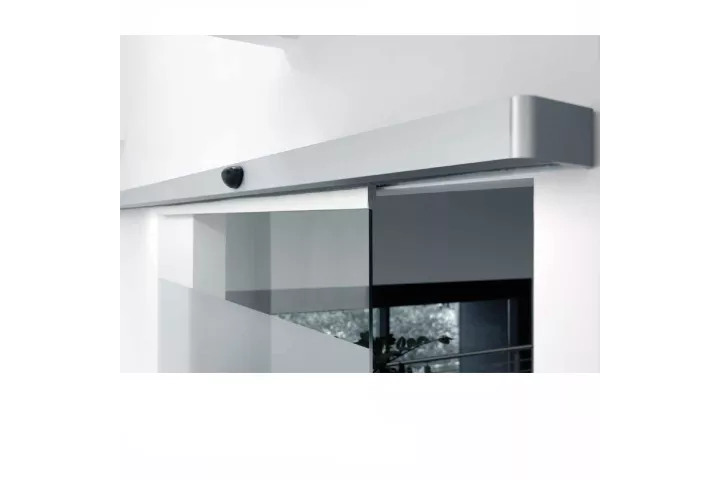

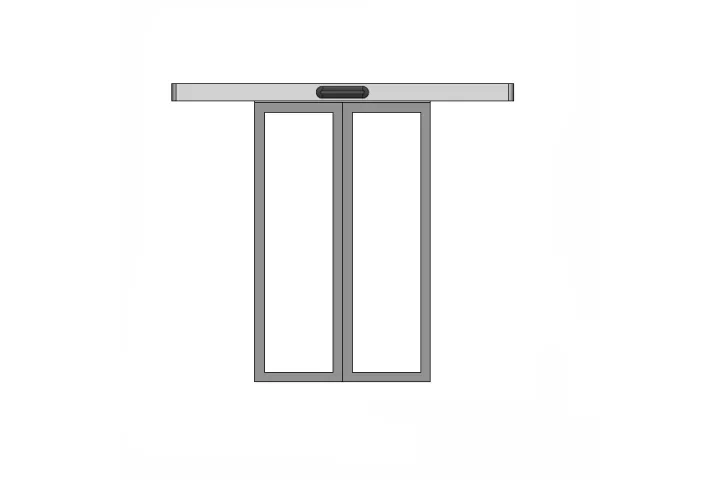

LEV1902L, Automation for Sliding doors (2 leafs) 120+120kg, 450+450mm/1950mm

You can't see the prices because you are not logged in.

Not a customer yet? Request your account.

Log in Create an account

Description

The LEV1902L is a silent 24Vdc sliding door operator with integrated control (type: CTLEVL). The LEV1902L is suitable for double sliding doors up to 120 + 120 kg (maximum door wing length: 450 + 450 mm / total automatic length: 1,950 mm) and can be used in an environment where it is often used. The LEV1902L has a very beautifully finished aluminum housing with integrated LED lighting.

Specifications

SKU 536934.000530
Electrical Power 130 W
Inrush duration 100 %
IP value 22
Max. door width 450 mm
Max. door weight (1 door) 160 kg
Max. door weight (2 doors) 120 kg
Max. opening speed Max. 80 cm/s
Max. closing speed Max. 50 cm/s
Mains frequency 50/60 Hz
Temperature range –20°C...+55°C
Supply voltage 230 Vac

Accessories

PA021 aluminium floor guidance and track for LEVANTE /m

Sliding door automatic sets, revolving door automatic sets and accessories

PA021 aluminium floor guidance and track for LEVANTE /m
Art. No 536936.000690
PA024, plate with hinge and nylon block for WIND and WIND LIGHT

Sliding door automatic sets, revolving door automatic sets and accessories

PA024, plate with hinge and nylon block for WIND and WIND LIGHT
Art. No 536936.000696
Movement sensor, type: PA012MW

Sliding door automatic sets, revolving door automatic sets and accessories

Movement sensor, type: PA012MW
Art. No 536944.000001
LEV1, Electric lock with cord release for Levante

Sliding door automatic sets, revolving door automatic sets and accessories

LEV1, Electric lock with cord release for Levante
Art. No 536936.000693
Motion and presence sensor, type: PA025CT

Sliding door automatic sets, revolving door automatic sets and accessories

Motion and presence sensor, type: PA025CT
Art. No 536944.000007
KITANTSF2C, Emergency kit for single leafs up to 1.300mm-90kg (certified)

Sliding door automatic sets, revolving door automatic sets and accessories

KITANTSF2C, Emergency kit for single leafs up to 1.300mm-90kg (certified)
Art. No 536936.000732
SEL1 Manual selector for sliding door LEVANTE

Sliding door automatic sets, revolving door automatic sets and accessories

SEL1 Manual selector for sliding door LEVANTE
Art. No 536936.000001
Set of emergency batteries, type LEV2 for sliding door operators (type: LEVANTE)

Sliding door automatic sets, revolving door automatic sets and accessories

Set of emergency batteries, type LEV2 for sliding door operators (type: LEVANTE)
Art. No 536936.000500
EASY2, Digital pad with graphic display specific for Levante

Sliding door automatic sets, revolving door automatic sets and accessories

EASY2, Digital pad with graphic display specific for Levante
Art. No 536936.000750
LEV5, Releasemechanism for electric lock LEV1

Sliding door automatic sets, revolving door automatic sets and accessories

LEV5, Releasemechanism for electric lock LEV1
Art. No 536936.000003
Mounting kit KLEV1 for sliding door operators LEVANTE with one door leaf

Sliding door automatic sets, revolving door automatic sets and accessories

Mounting kit KLEV1 for sliding door operators LEVANTE with one door leaf
Art. No 536936.000007
Mounting kit KLEV2 for sliding door operators LEVANTE with 2 door leafs

Sliding door automatic sets, revolving door automatic sets and accessories

Mounting kit KLEV2 for sliding door operators LEVANTE with 2 door leafs
Art. No 536936.000010
SEL2 Manual selector with lock for sliding door LEVANTE

Sliding door automatic sets, revolving door automatic sets and accessories

SEL2 Manual selector with lock for sliding door LEVANTE
Art. No 536936.000031
